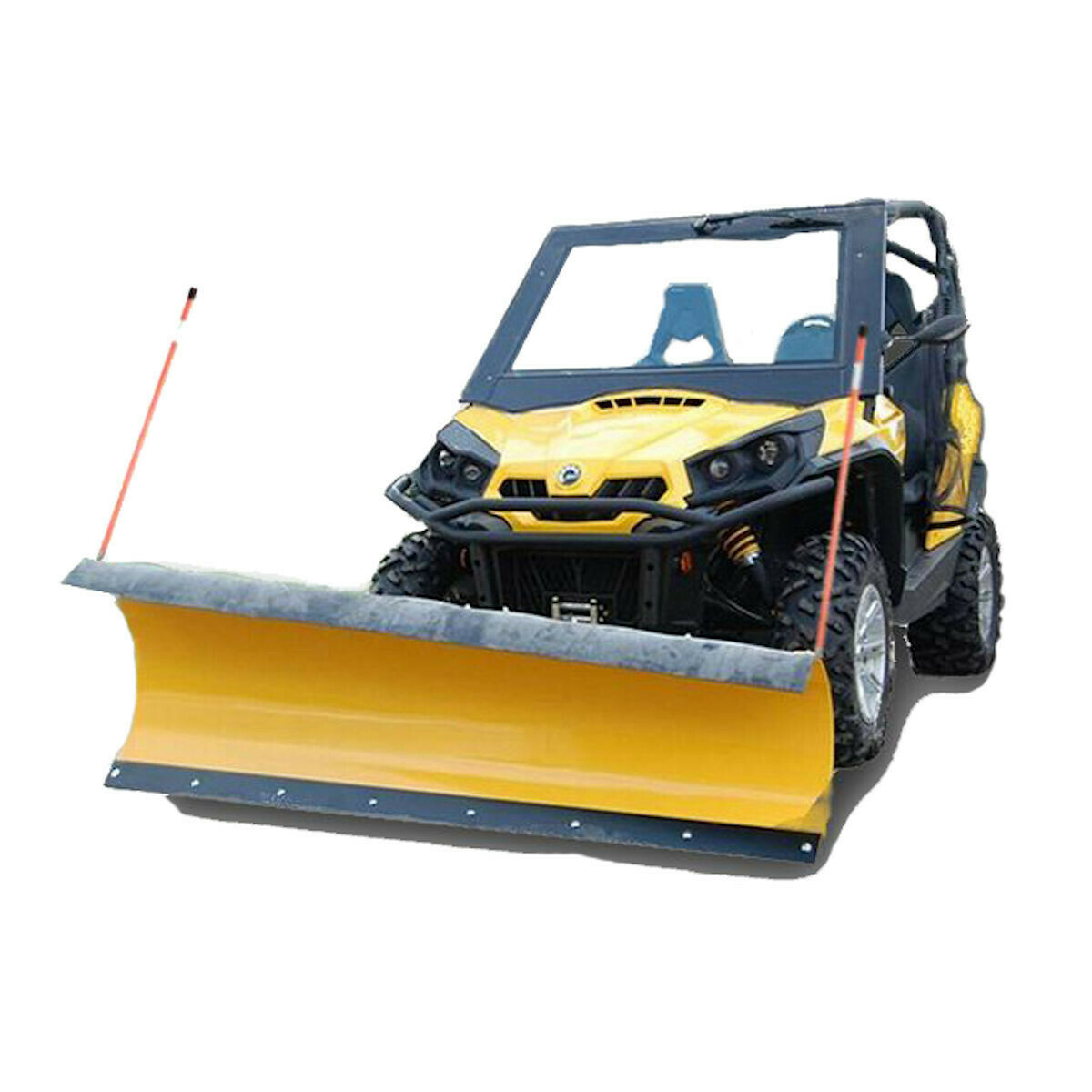

DENALI Pro Series UTV Snow Plows are ready for the snow season! Our team of engineers designed a Cadillac plow at a reasonable price so you don't have to skimp on quality to save money. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV and SxS, preventing damage to the front end or other vehicle parts from sudden impact.
Please Note:All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch with an automatic brake.
Kit Contents:
- UTV Snow Plow Blade - County / DOT Style
- UTV Pushtubes
- One (1) Reversible Wearbar
- Rubber Flap
- Rubber Flap Stabilizer Bar
- Skid Feet
- Plow Markers
- Plow Mount (machine specific)
- Installation Hardware and Instructions
Blade Features:
- County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
- Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
- Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
- High strength, high yield 3/16 thick Grade 50 steel wear bar
- Angled Blade : 16 on the low side; 23 on the high side
- Rubber flap & stabilizer bar with rubber flap
- Height AND angle adjustable steel skid feet
- 3 Year Warranty
- Made in the USA
- Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
- Turn system allows for easy positioning of the blade in 5 different angles - 0, 12.5°, 25°
- Simple detachment system with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Quick release pins included
- Extended Push Tubes are designed to be used with SxS/UTVs with tracks installed
- Top of the line Parker hydraulics system with built in relief valve overload protection
- Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
- Change the blade angle while driving; full radius turn in just 5 seconds
- Heavy duty chrome plated ¾″ cylinder shaft
- No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
- Wire harness utilizes weatherproof connectors
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3" x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
Fitment
MA11700_B
2008-2014 RZR
2008-2014 RZR-S
2008-2014 RZR-4
2012-2021 RZR 570 & 570-S (includes 2020-2021 Trail models)
2008-2014 RZR 800
2011-2014 RZR XP 900
2011-2014 RZR XP 4 900 (4 seater)
MA11705
2018-2021 RZR Turbo S
2019-2021 RZR-4 Turbo S
Please Note: will NOT work with Polaris Winch Mount (P/N 2883828)
MA11706
2015-2021 RZR 900
2015-2021 RZR-4 900
2014-2020 RZR 1000 XP
2014-2020 RZR-4 1000 XP
2016-2021 RZR Turbo XP
2016-2021 RZR-4 Turbo XP
MA11741
2020-2021 RZR PRO XP
2020-2021 RZR PRO XP 4
