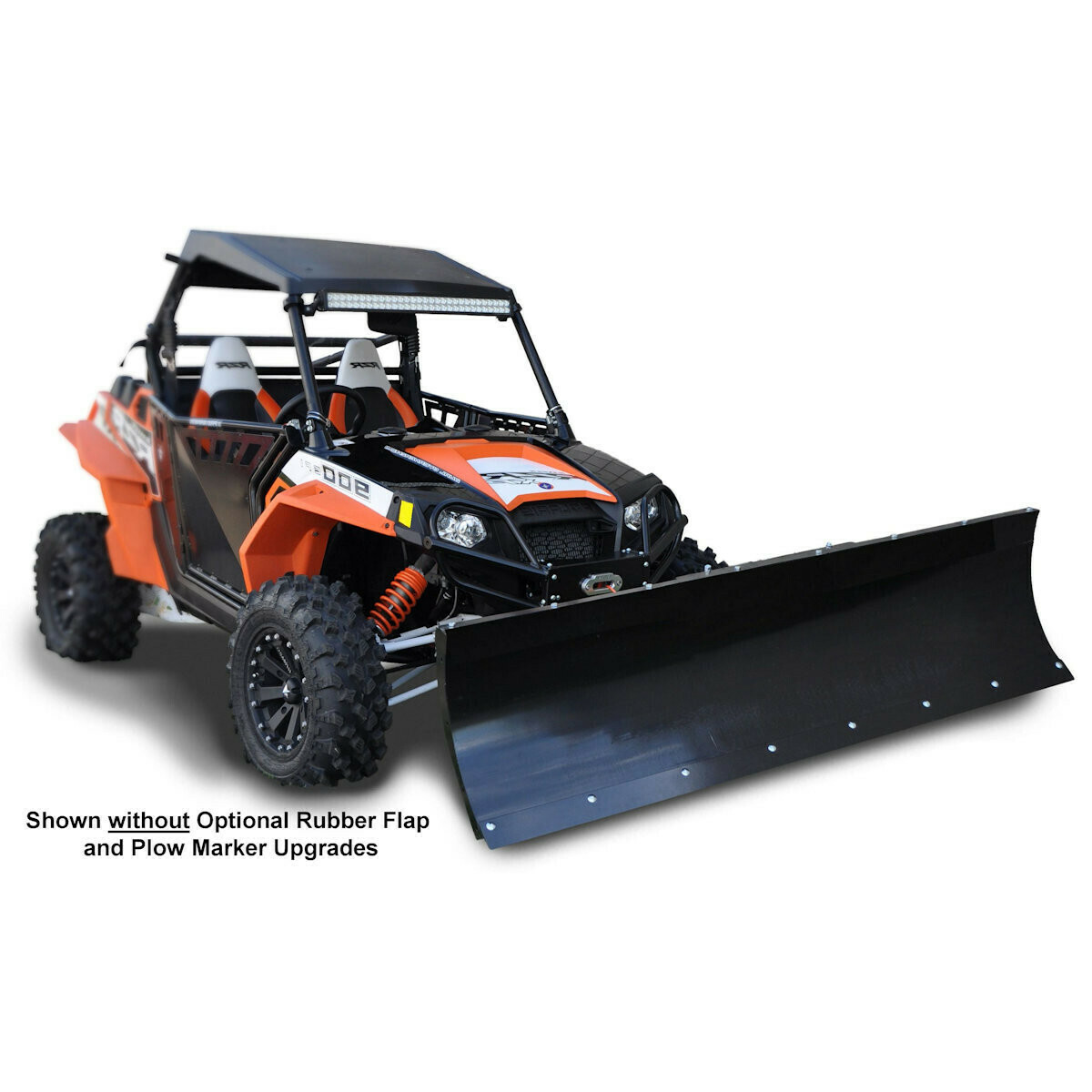

DENALI Standard Series ATV/UTV Snow Plows are made to handle the toughest conditions including sand, snow, and ice. The "Easy-Connect" design created by MotoAlliance engineers makes attaching and detaching the plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact.
Please Note: all DENALI UTV Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch with an automatic brake.
Kit Contents:
- UTV Snow Plow Blade - Straight
- Pushtubes
- Two (2) Wearbars
- Skid Feet
- Installation Hardware and Instructions
Blade Features:
- Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
- Four 7 gauge ribs run the full height of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65° attack angle and over center design ensures snow rolls up and is thrown forward
- Two (2), Replaceable 7gauge steel wear bars included with every kit
- Height and angle adjustable skid feet included
- 3 Year Warranty
Pushtube Features:
- Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
- Turn system allows you to easily position your plow in 5 different angles - 0, 12.5°, 25°
- Simple detachment system with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Quick Release Pins included
- Extended Push Tubes are designed to be used with SxS/UTVs that have tracks
Optional Hydroturn Features:
- Top of the line Parker hydraulics system with built in relief valve overload protection
- Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
- Change the blade angle while driving; full radius turn in just 5 seconds
- Heavy duty chrome plated ¾″ cylinder shaft
- No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
- Wire harness utilizes weatherproof connectors
Optional Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3″ x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyele
Fitment
MA11700
2008-2014 RZR
2008-2014 RZR-S
2008-2014 RZR-4
2012-2021 RZR 570 & 570-S (includes 2020-2021 Trail models)
2008-2014 RZR 800
2011-2014 RZR XP 900
2011-2014 RZR XP 4 900 (4 seater)
MA11705
2018-2021 RZR Turbo S
2019-2021 RZR-4 Turbo S
Please Note: will NOT work with Polaris Winch Mount (P/N 2883828)
MA11706
2015-2021 RZR 900
2015-2021 RZR-4 900
2014-2020 RZR 1000 XP
2014-2020 RZR-4 1000 XP
2016-2021 RZR Turbo XP
2016-2021 RZR-4 Turbo XP
MA11741
2020-2021 RZR PRO XP
2020-2021 RZR PRO XP 4
