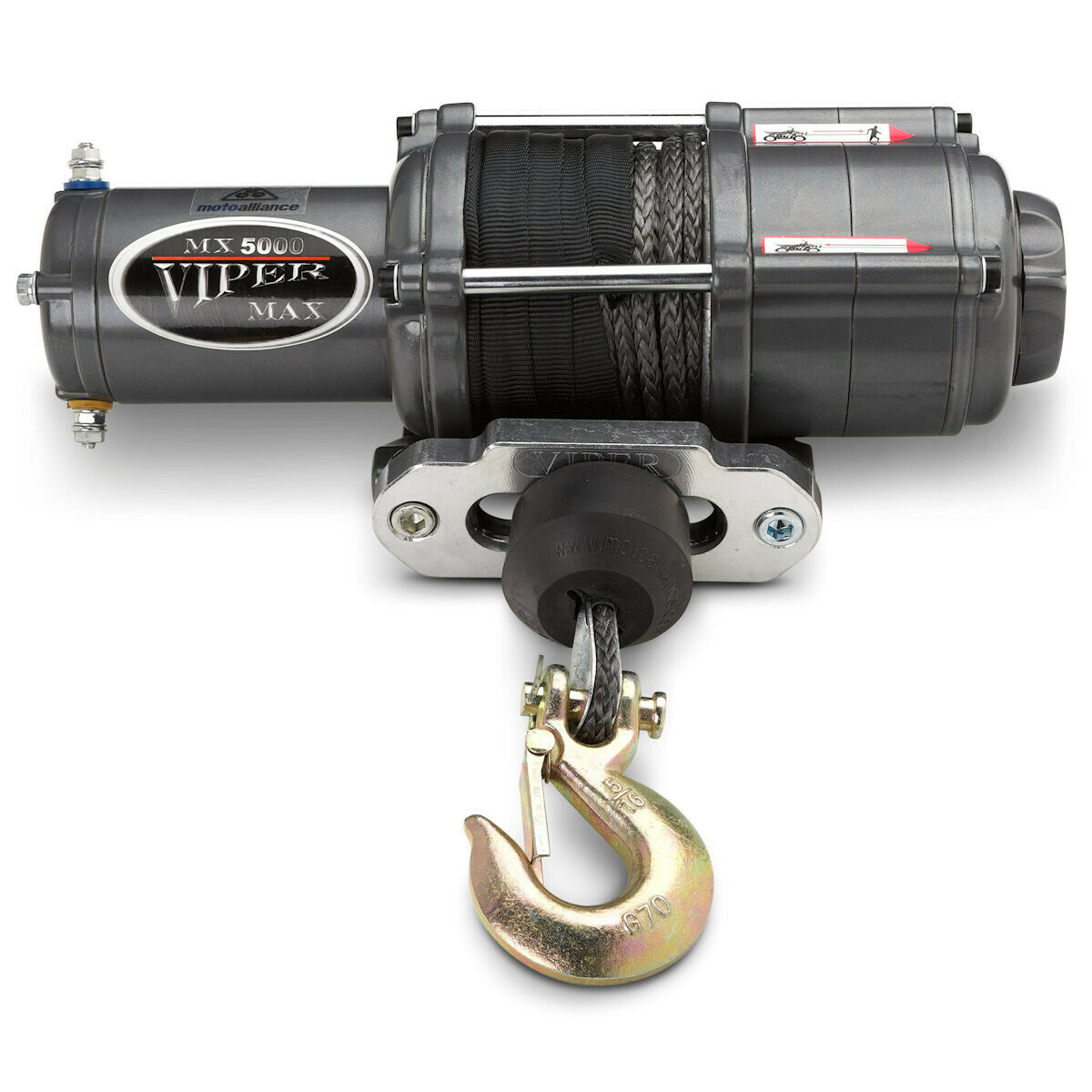

The VIPER Max ATV/UTV Winch is a durable winch for ATV, UTVs and Side by Sides. VIPER Max winches 3,500lb and larger also carry the official IP67 waterproof rating -- a claim not made by any other winch in the market. Manufactured in an ISO/TS 16949 quality facility with military grade raw materials, it is a great winch for snowplowing and mudding with ATVs, UTVs and SxSs. The VIPER Max is fully sealed with a composite housing and planetary metal gear train, a permanent magnet motor, an automatic brake, and stainless-steel hardware.
Features:
- IP67 Waterproof Rating on winches 3,500-6,000lbs
- Metal gears
- Automatic brakes
- Waterproof Switches
- Limited Lifetime Warranty (winch) / Rope (6 months)
Kit Contents:
- Steel Cable or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)
- 2,500-4,500lb winches : 3/16″ (.476mm) x 50′ - 5,400lb breaking strength
- 5,000lb winches : 1/4″ (.635mm) x 40′ - 8,600lb breaking strength
- Fairlead - Roller or Aluminum Hawse based on the type of cable
- Contactor & Wiring
- 9 ft. Cabled Remote Switch
- Rocker Handlebar Switch
- Clevis Hook
- Rubber Line Stopper
- Hand Saver Strap
- Universal Fairlead Mount Plate (see note below)
- Installation Hardware and Instructions
Specs
- Cable - Steel or BLACK Dyneema
- Motor - 12V DC, Sealed permanent magnet
- Gearing / Gear Ratio - 3-Stage planetary/136:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets
Optional Extended Service Plan
VIPER Max winches are eligible for a two (2) year, extended service plan, where all maintenance and repairs are covered no questions asked. Simply send in your winch and we will take care of it from there! Plan details include:
- All repairs and service up to the full replacement value of the winch - no questions asked
- Coverage is for every part of the winch, including cables and fairleads
- Receive a 25% off voucher at the end of two (2) years for the use on a new winch or any MotoAlliance product
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.
