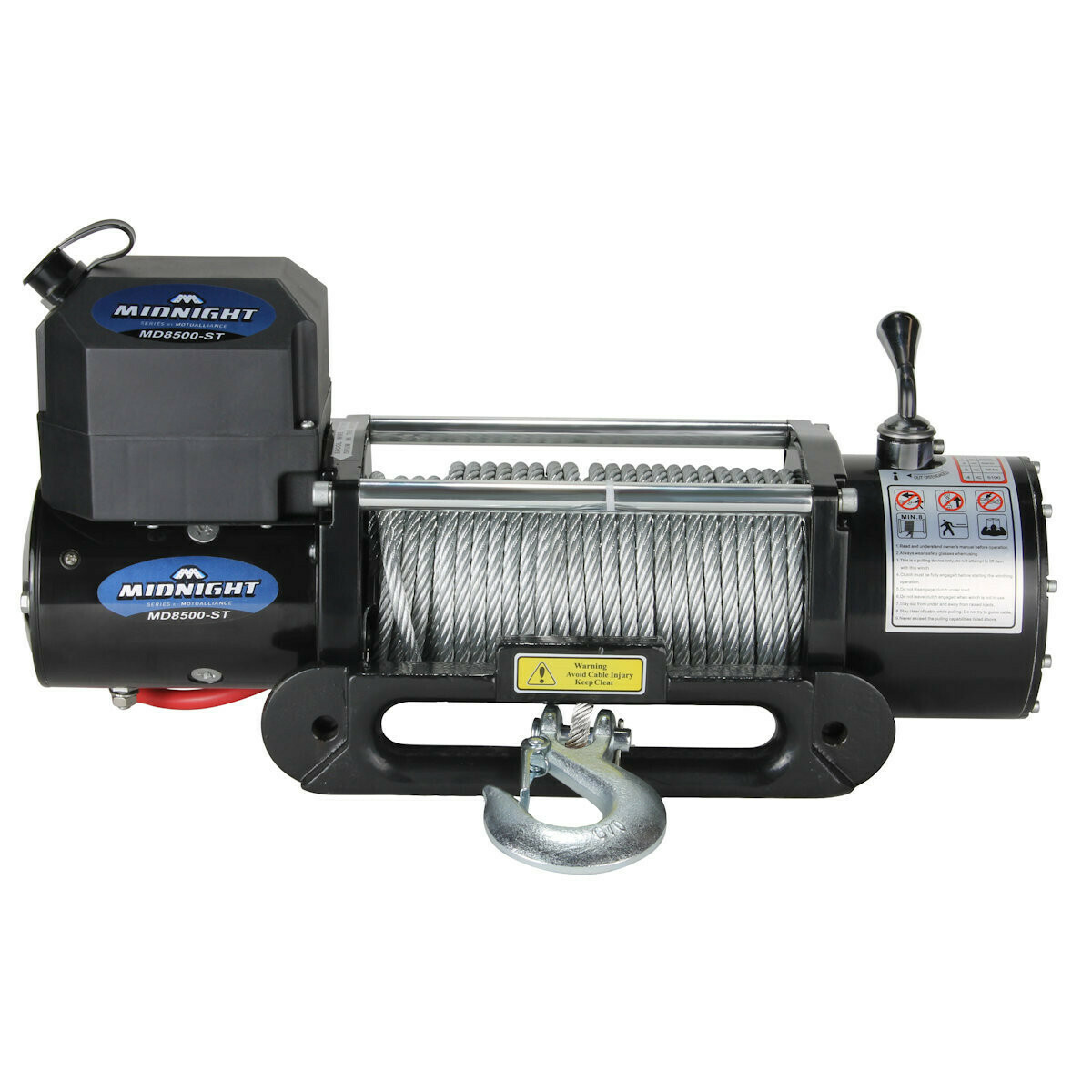

VIPER Midnight 8,500lb Recovery 4x4 Truck Winch are perfect when needing a durable winch for Jeeps, Tow Trucks and all Recovery vehicles. Manufactured in an ISO/TS 16949 Facility with military grade materials and constructed with permanent magnet motors and steel gears, the Midnight 8,500 winch delivers a reliable performance that users recognize and trust. Fully sealed with a metal, 3-stage planetary gear train, it is heavy duty and includes all the features and extras that users recognize and trust. Backed by a Limited Lifetime Warranty and toll-free customer service line, this metal bodied winch has a standard mounting bolt pattern of 10″ x 4.5″.
Features:
- Integrated Contactor/Solenoid
- Wireless and Cabled Remotes
- Mounting Bolt Pattern - 10.0″ x 4.5″ (254mm x 114.3mm)
- Limited Lifetime Warranty (winch) / 6 months (rope)
Kit Contents:
- 94' x 5/16" Steel Cable or Synthetic Rope (rope includes 6 month warranty)
- Fairlead - Steel or Aluminum Hawse based on the type of cable
- Wireless Remote Switch
- 15′ Cabled/Tethered Remote Switch
- Integrated Contactor/Solenoid (weather sealed)
- Circuit Breaker (weather sealed)
- 6ft of 2-gauge (English) / 196.4 (Metric) Wiring
- Clevis Hook & Handsaver Strap
- Installation Hardware and Instructions
Specs
- Cable - Steel or BLACK Dyneema
- Motor - 12V DC, Sealed 4.5HP permanent magnet
- Rated Line Pull - 8,500lbs (3855.5kgs)
- Line Speed - 0lbs 84 Amps motor draw / 18 FPM (5.5 MPM)
- Line Speed - 8,500lbs 320 Amps motor draw / 3.5 FMP (1.1 MPM)
- Gearing / Gear Ratio - 3-Stage planetary / 235:1
- Brake - Mechanical, Automatic load holding
- Clutch - Free-Spooling, Lever Activated
- Dimensions - 21.3 (L) x 6.3 (D) x 8.6 (H) (541mm x 160mm x 218mm)
- Mounting Bolt Pattern - 10.0 x 4.5 (254mm x 144.3mm)
MotoAlliance warrants to the original purchaser that VIPER Midnight 8,500 winch (a) mechanical components will be free of defects in material and workmanship, and (b) electrical components will be free of defects in material and workmanship for a period of one (1) year from purchase.
